●無(wu)極性、雙極性、雙陽極、雙正(zheng)極鋁電解電容。
●保證(zheng)105℃ 5000小時產品,低阻抗品。
●大型化(hua)產品，無(wu)極(ji)性(xing)(xing)，適用于極(ji)性(xing)(xing)反轉(zhuan)或極(ji)性(xing)(xing)不明電路(lu)中, 作合(he)耦合(he)、固(gu)態(tai)去耦合(he)器，旁路(lu)和濾波(bo)用。
●大(da)適用于耦(ou)合電(dian)路，陰極保(bao)護(hu)設備(bei)，恒電(dian)位儀管道保(bao)護(hu)，管道儀器(qi)，避雷設備(bei),排流器(qi),電(dian)涌保(bao)護(hu)器(qi)等(deng)。
◆規格表
|
項目 |
特性, |
||
|
工作溫(wen)度范(fan)圍 |
-25～+105℃ |
||
|
額定電壓范圍 |
16～100VDC |
||
|
靜電容量容許差 |
± 20%（M） ----------- 20℃/120HZ |
||
|
漏電流 |
I=0.02CV或者5mA中任意一個較小值 |
||
|
損失角正(zheng)切值（tanδ） |
≤0.25 ------------------ 20℃/120HZ |
||
|
溫度特性 |
靜電容量(liang)變化率 C（-25℃）/C（+20℃）≥0.7 --------------- 20℃/120HZ |
||
|
絕緣電(dian)阻 |
全部端子和容器套(tao)上(shang)的(de)(de)(de)絕(jue)緣套(tao)且(qie)安(an)裝的(de)(de)(de)固定帶之(zhi)間用DC500V的(de)(de)(de)絕(jue)緣電阻測定儀測出的(de)(de)(de)值≥101MΩ |
||
|
絕緣耐壓(ya) |
全部端子和容器套(tao)(tao)的(de)(de)絕緣(yuan)套(tao)(tao)且安裝的(de)(de)固定帶之間施加AC2000V的(de)(de)電壓1分鐘未出現異常。 |
||
|
耐(nai)久(jiu)性 |
在105℃環境下，不超過額定電壓的范圍下疊加額定紋波電流，連續加載額定電壓5000小時后， |
||
|
靜電(dian)容量變化率(lv) |
≤初始值的±20% |
||
|
損失角正切值(zhi) |
≤初始規格值的200% |
||
|
漏(lou)電流 |
≤初始規格(ge)值 |
||
|
高溫(wen)無(wu)負荷特性 |
在105℃環境下，無負荷放置1000小時后待溫度恢復到20℃，進行試驗前處理（JIS C 5101-4 4.1項） |
||
|
靜電容量變化率 |
≤初始值的±20% |
||
|
損失角正切值 |
≤初始規格值的200% |
||
|
漏電流 |
≤初始規格值 |
||

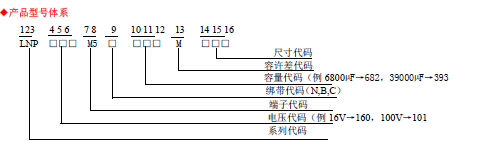

標準品一覽(lan)表
|
工作(zuo)電(dian)壓 |
額定容量 |
外殼尺(chi)寸D x L |
低阻抗120HZ,20℃ |
額(e)定紋波電流(liu) |
產品型號 |
|
[V] |
[μF] |
[mm] |
[mΩ] |
（Ams/85℃,120Hz） |
|
|
16v |
82000 |
35*55 |
6 |
9 |
LNP160M5B823MA055 |
|
120000 |
35*70 |
4 |
12 |
LNP160M5B124MA070 |
|
|
120000 |
42*50 |
4 |
11.1 |
LNP160M5B124MB500 |
|
|
150000 |
35*80 |
4 |
14.2 |
LNP160M5B154MA800 |
|
|
150000 |
42*60 |
3 |
13.7 |
LNP160M5B154MB060 |
|
|
180000 |
35*100 |
3 |
17 |
LNP160M5B184MA101 |
|
|
180000 |
42*70 |
3 |
15.8 |
LNP160M5B184MB070 |
|
|
180000 |
42*80 |
3 |
15 |
LNP160M5B184MB800 |
|
|
220000 |
42*90 |
2 |
19.1 |
LNP160M5B224MB090 |
|
|
220000 |
50*70 |
2 |
17.7 |
LNP160M5B224MC070 |
|
|
270000 |
42*110 |
2 |
21.1 |
LNP160M5B274MB110 |
|
|
270000 |
50*80 |
2 |
20.6 |
LNP160M5B274MC800 |
|
|
390000 |
50*100 |
1 |
27 |
LNP160M5B394MC101 |
|
|
470000 |
65*80 |
1 |
35.6 |
LNP160M6C474MD800 |
|
|
560000 |
65*100 |
1 |
42.1 |
LNP160M6C564MD101 |
|
|
820000 |
65*130 |
1 |
56.5 |
LNP160M6C824MD130 |
|
|
820000 |
76*100 |
1 |
44.1 |
LNP160M6C824ME101 |
|
|
1010000 |
76*115 |
1 |
46.5 |
LNP160M6C105ME115 |
|
|
1200000 |
76*145 |
1 |
50.8 |
LNP160M6C125ME145 |
|
|
1500000 |
76*165 |
1 |
53.5 |
LNP160M6C155ME165 |
|
|
1800000 |
89*148 |
1 |
57.3 |
LNP160M6C185MF148 |
|
|
2200000 |
76*225 |
1 |
61 |
LNP160M6C225ME225 |
|
|
2200000 |
89*170 |
1 |
60.4 |
LNP160M6C225MF170 |
|
|
2700000 |
89*220 |
1 |
67.1 |
LNP160M6C275MF220 |
|
|
3300000 |
89*230 |
1 |
68.3 |
LNP160M6C335MF230 |
|
|
25v |
33000 |
35*55 |
14 |
5.9 |
LNP250M5B333MA055 |
|
47000 |
35*70 |
9 |
7.8 |
LNP250M5B473MA070 |
|
|
47000 |
42*50 |
9 |
7.2 |
LNP250M5B473MB500 |
|
|
56000 |
35*80 |
8 |
9 |
LNP250M5B563MA800 |
|
|
68000 |
42*60 |
7 |
9.5 |
LNP250M5B683MB060 |
|
|
68000 |
35*100 |
5 |
11.9 |
LNP250M5B683MA101 |
|
|
68000 |
42*70 |
7 |
10 |
LNP250M5B683MB070 |
|
|
82000 |
42*80 |
5 |
10.5 |
LNP250M5B823MB800 |
|
|
40v |
180000 |
65*130 |
2 |
29.6 |
LNP400M6C184MD130 |
|
220000 |
76*115 |
2 |
26.9 |
LNP400M6C224ME115 |
|
|
270000 |
76*145 |
1 |
32.6 |
LNP400M6C274ME145 |
|
|
330000 |
76*165 |
1 |
38 |
LNP400M6C334ME165 |
|
|
470000 |
89*148 |
1 |
48.5 |
LNP400M6C474MF148 |
|
|
470000 |
76*225 |
1 |
51.6 |
LNP400M6C474ME225 |
|
|
560000 |
89*170 |
1 |
55.8 |
LNP400M6C564MF170 |
|
|
680000 |
89*220 |
1 |
68.3 |
LNP400M6C684MF220 |
|
|
680000 |
89*230 |
1 |
69.6 |
LNP400M6C684MF230 |
|
|
50v |
6800 |
35*50 |
38 |
2.5 |
LNP500M5B682MA500 |
|
8200 |
35*50 |
33 |
2.8 |
LNP500M5B822MA500 |
|
|
10100 |
42*40 |
22 |
3.1 |
LNP500M5B103MB400 |
|
|
15000 |
42*50 |
18 |
3.3 |
LNP500M5B153MB500 |
|
|
15000 |
35*60 |
16 |
3.4 |
LNP500M5B153MA060 |
|
|
18000 |
42*60 |
14 |
6.1 |
LNP500M5B183MB060 |
|
|
22000 |
42*70 |
10 |
6.5 |
LNP500M5B223MB070 |
|
|
27000 |
50*70 |
8 |
8 |
LNP500M5B273MC070 |
|
|
33000 |
42*100 |
7 |
7 |
LNP500M5B333MB101 |
|
|
39000 |
50*90 |
7 |
10 |
LNP500M5B393MC090 |
|
|
47000 |
65*70 |
4 |
13.1 |
LNP500M6C473MD070 |
|
|
68000 |
65*85 |
4 |
16.5 |
LNP500M6C683MD085 |
|
|
82000 |
76*90 |
3 |
17.1 |
LNP500M6C823ME090 |
|
|
101000 |
65*120 |
3 |
22.1 |
LNP500M6C104MD120 |
|
|
120000 |
76*110 |
2 |
20.3 |
LNP500M6C124ME110 |
|
|
150000 |
76*130 |
2 |
24.6 |
LNP500M6C154ME130 |
|
|
180000 |
76*150 |
2 |
28.6 |
LNP500M6C184ME150 |
|
|
220000 |
89*140 |
1 |
35.1 |
LNP500M6C224MF140 |
|
|
270000 |
76*200 |
1 |
38.8 |
LNP500M6C274ME200 |
|
|
330000 |
89*200 |
1 |
48.6 |
LNP500M6C334MF200 |
|
|
390000 |
89*210 |
1 |
51.6 |
LNP500M6C394MF210 |
|
|
470000 |
89*230 |
1 |
56.5 |
LNP500M6C474MF230 |
|
|
63v |
8200 |
35*55 |
35 |
3.7 |
LNP630M5B822MA055 |
|
12000 |
42*50 |
24 |
4.6 |
LNP630M5B123MB500 |
|
|
15000 |
35*70 |
19 |
5.5 |
LNP630M5B153MA070 |
|
|
18000 |
35*80 |
16 |
6.3 |
LNP630M5B183MA800 |
|
|
18000 |
42*60 |
16 |
6.1 |
LNP630M5B183MB060 |
|
|
18000 |
35*100 |
16 |
6.9 |
LNP630M5B183MA101 |
|
|
22000 |
42*70 |
13 |
7.1 |
LNP630M5B223MB070 |
|
|
22000 |
42*80 |
13 |
6.8 |
LNP630M5B223MB800 |
|
|
27000 |
50*70 |
11 |
8 |
LNP630M5B273MC070 |
|
|
27000 |
42*110 |
11 |
8.6 |
LNP630M5B273MB110 |
|
|
33000 |
50*80 |
9 |
9.3 |
LNP630M5B333MC800 |
|
|
33000 |
42*110 |
9 |
9.5 |
LNP630M5B333MB110 |
|
|
100v |
6800 |
35*100 |
23 |
5.7 |
LNP101M5B682MA101 |
|
6800 |
42*70 |
23 |
5.3 |
LNP101M5B682MB070 |
|
|
8200 |
42*80 |
19 |
5.5 |
LNP101M5B822MB800 |
|
|
10100 |
50*70 |
16 |
6.5 |
LNP101M5B103MC070 |
|
|
10100 |
42*110 |
16 |
7.1 |
LNP101M5B103MB110 |
|
|
12000 |
42*120 |
13 |
7.7 |
LNP101M5B123MB120 |
|
|
12000 |
50*80 |
13 |
7.5 |
LNP101M5B123MC800 |
|
|
15000 |
50*100 |
11 |
9.2 |
LNP101M5B153MC101 |
|
|
18000 |
65*80 |
9 |
12.1 |
LNP101M6C183MD800 |
|
|
22000 |
65*100 |
7 |
14.5 |
LNP101M6C223MD101 |
|
|
25v |
82000 |
42*90 |
7 |
11 |
LNP250M5B823MB090 |
|
101000 |
50*70 |
4 |
12.3 |
LNP250M5B104MC070 |
|
|
120000 |
42*110 |
4 |
14.6 |
LNP250M5B124MB110 |
|
|
120000 |
50*80 |
4 |
14.2 |
LNP250M5B124MC800 |
|
|
150000 |
50*100 |
3 |
17.3 |
LNP250M5B154MC101 |
|
|
180000 |
65*80 |
3 |
22.4 |
LNP250M6C184MD800 |
|
|
270000 |
65*100 |
2 |
29.8 |
LNP250M6C274MD101 |
|
|
330000 |
76*100 |
1 |
28.5 |
LNP250M6C334ME101 |
|
|
330000 |
65*130 |
1 |
36.4 |
LNP250M6C334MD130 |
|
|
390000 |
65*130 |
1 |
32.6 |
LNP250M6C394MD130 |
|
|
560000 |
76*145 |
1 |
42.7 |
LNP250M6C564ME145 |
|
|
560000 |
76*165 |
1 |
45 |
LNP250M6C564ME165 |
|
|
820000 |
89*148 |
1 |
58.2 |
LNP250M6C824MF148 |
|
|
820000 |
89*148 |
1 |
62 |
LNP250M6C824MF148 |
|
|
820000 |
89*170 |
1 |
61.5 |
LNP250M6C824MF170 |
|
|
1200000 |
89*220 |
1 |
82.6 |
LNP250M6C125MF220 |
|
|
1500000 |
89*230 |
1 |
94 |
LNP250M6C155MF230 |
|
|
40v |
18000 |
35*55 |
21 |
4.7 |
LNP400M5B183MA055 |
|
22000 |
42*50 |
17 |
5.3 |
LNP400M5B223MB500 |
|
|
27000 |
35*70 |
14 |
6.4 |
LNP400M5B273MA070 |
|
|
33000 |
35*80 |
12 |
7.4 |
LNP400M5B333MA800 |
|
|
33000 |
42*60 |
12 |
7.2 |
LNP400M5B333MB060 |
|
|
39000 |
35*100 |
10 |
8.9 |
LNP400M5B393MA101 |
|
|
39000 |
42*70 |
10 |
8.2 |
LNP400M5B393MB070 |
|
|
39000 |
42*80 |
10 |
7.8 |
LNP400M5B393MB800 |
|
|
56000 |
50*70 |
7 |
10 |
LNP400M5B563MC070 |
|
|
56000 |
42*90 |
7 |
10.8 |
LNP400M5B563MB090 |
|
|
68000 |
50*80 |
6 |
11.6 |
LNP400M5B683MC800 |
|
|
68000 |
42*110 |
6 |
11.8 |
LNP400M5B683MB110 |
|
|
82000 |
50*100 |
5 |
13.8 |
LNP400M5B823MC101 |
|
|
101000 |
65*80 |
4 |
18.3 |
LNP400M6C104MD800 |
|
|
150000 |
65*100 |
3 |
24.4 |
LNP400M6C154MD101 |
|
|
180000 |
76*100 |
2 |
23.1 |
LNP400M6C184ME101 |
|
|
63v |
39000 |
50*100 |
7 |
11 |
LNP630M5B393MC101 |
|
47000 |
65*80 |
6 |
14.5 |
LNP630M6C473MD800 |
|
|
68000 |
65*100 |
4 |
19 |
LNP630M6C683MD101 |
|
|
82000 |
76*100 |
3 |
18 |
LNP630M6C823ME101 |
|
|
101000 |
65*130 |
3 |
25.5 |
LNP630M6C104MD130 |
|
|
120000 |
76*115 |
2 |
22.9 |
LNP630M6C124ME115 |
|
|
150000 |
76*145 |
2 |
28.1 |
LNP630M6C154ME145 |
|
|
180000 |
76*165 |
2 |
32.4 |
LNP630M6C184ME165 |
|
|
220000 |
89*148 |
1 |
38.3 |
LNP630M6C224MF148 |
|
|
220000 |
76*225 |
1 |
40.8 |
LNP630M6C224ME225 |
|
|
270000 |
89*170 |
1 |
44.8 |
LNP630M6C274MF170 |
|
|
330000 |
89*220 |
1 |
54.9 |
LNP630M6C334MF220 |
|
|
390000 |
89*230 |
1 |
60.9 |
LNP630M6C394MF230 |
|
|
80v |
6800 |
35*55 |
47 |
3.2 |
LNP800M5B682MA055 |
|
8200 |
42*50 |
39 |
3.8 |
LNP800M5B822MB500 |
|
|
10100 |
35*70 |
32 |
4.2 |
LNP800M5B103MA070 |
|
|
12000 |
35*80 |
27 |
4.6 |
LNP800M5B123MA800 |
|
|
12000 |
42*60 |
27 |
4.7 |
LNP800M5B123MB060 |
|
|
15000 |
35*100 |
21 |
6 |
LNP800M5B153MA101 |
|
|
15000 |
42*70 |
21 |
5.6 |
LNP800M5B153MB070 |
|
|
15000 |
42*80 |
21 |
5.3 |
LNP800M5B153MB800 |
|
|
18000 |
42*90 |
18 |
6.2 |
LNP800M5B183MB090 |
|
|
18000 |
50*70 |
18 |
6.2 |
LNP800M5B183MC070 |
|
|
22000 |
42*110 |
14 |
7.9 |
LNP800M5B223MB110 |
|
|
22000 |
50*80 |
14 |
7.2 |
LNP800M5B223MC800 |
|
|
27000 |
50*100 |
12 |
8.7 |
LNP800M5B273MC101 |
|
|
39000 |
65*80 |
8 |
12.6 |
LNP800M6C393MD800 |
|
|
47000 |
65*100 |
7 |
15 |
LNP800M6C473MD101 |
|
|
68000 |
65*130 |
5 |
15.7 |
LNP800M6C683MD130 |
|
|
68000 |
76*100 |
5 |
19.7 |
LNP800M6C683ME101 |
|
|
82000 |
76*115 |
4 |
18 |
LNP800M6C823ME115 |
|
|
101000 |
76*145 |
3 |
21.7 |
LNP800M6C104ME145 |
|
|
120000 |
76*165 |
3 |
25.1 |
LNP800M6C124ME165 |
|
|
150000 |
89*148 |
2 |
30 |
LNP800M6C154MF148 |
|
|
180000 |
76*225 |
2 |
35 |
LNP800M6C184ME225 |
|
|
180000 |
89*170 |
2 |
34.3 |
LNP800M6C184MF170 |
|
|
220000 |
89*220 |
1 |
42.6 |
LNP800M6C224MF220 |
|
|
270000 |
89*230 |
1 |
48 |
LNP800M6C274MF230 |
|
|
100v |
3300 |
35*55 |
48 |
3.1 |
LNP101M5B332MA055 |
|
4700 |
35*70 |
34 |
4.1 |
LNP101M5B472MA070 |
|
|
4700 |
42*55 |
34 |
3.8 |
LNP101M5B472MB055 |
|
|
5600 |
35*80 |
28 |
4.7 |
LNP101M5B562MA800 |
|
|
5600 |
42*70 |
28 |
4.6 |
LNP101M5B562MB070 |
|
|
100v |
27000 |
76*100 |
6 |
13.9 |
LNP101M6C273ME101 |
|
33000 |
65*130 |
5 |
19.6 |
LNP101M6C333MD130 |
|
|
39000 |
76*115 |
4 |
17.6 |
LNP101M6C393ME115 |
|
|
47000 |
76*145 |
3 |
21.1 |
LNP101M6C473ME145 |
|
|
56000 |
76*165 |
3 |
24.2 |
LNP101M6C563ME165 |
|
|
68000 |
89*148 |
2 |
28.6 |
LNP101M6C683MF148 |
|
|
82000 |
76*225 |
2 |
33.4 |
LNP101M6C823ME225 |
|
|
82000 |
89*170 |
2 |
33.1 |
LNP101M6C823MF170 |
|
|
120000 |
89*220 |
1 |
44.5 |
LNP101M6C124MF220 |
|
|
120000 |
89*230 |
1 |
45.3 |
LNP101M6C124MF230 |
◆ 額定紋波電(dian)流頻率修(xiu)正系數(shu)
紋(wen)波頻(pin)率與標準(zhun)品一(yi)覽(lan)表(biao)的規定值(zhi)(zhi)相異時(shi)，請使(shi)用小于乘(cheng)以下表(biao)系數所得之值(zhi)(zhi)的值(zhi)(zhi)。
● 頻率修正系(xi)數
※ 鋁電解電容器由于在紋波電流疊加時自我發熱、溫度上升而老化，第升溫5～10℃壽命減少一半。
要想保持(chi)長壽(shou)命請在使用(yong)過程中(zhong)降(jiang)低紋(wen)波電流(liu)。此外，額定(ding)電壓(ya)的80%以上到額定(ding)電壓(ya)范(fan)圍內可通過降(jiang)低電壓(ya)延長壽(shou)命。
|
頻率（HZ） |
50 |
120 |
300 |
1M |
3M |
|
修(xiu)正系數 |
0.8 |
1.0 |
1.1 |
1.3 |
1.4 |
深圳市青佺電子有限公司 版權所有
全國統一服務熱線：0755-27299931 / QQ：1498113525 / E-mail:sunny@unitshop.cn
公司地址：深圳市福永鎮福海科技工業園
鄧白氏(shi)編(bian)碼：420674259
<tr id='6dDIK'><strong id='fwOfs'></strong><small id='MA7Ik'></small><button id='DYbkl'></button><li id='SYiGg'><noscript id='gY7Kf'><big id='duXZq'></big><dt id='Ykh0l'></dt></noscript></li></tr><ol id='kKKuQ'><option id='BuMwT'><table id='FSRth'><blockquote id='g68CD'><tbody id='qAe0p'></tbody></blockquote></table></option></ol><u id='rMgsw'></u><kbd id='tQb9a'><kbd id='inY1P'></kbd></kbd>
資料下載
