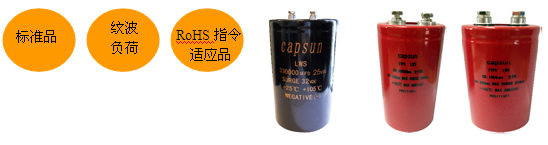

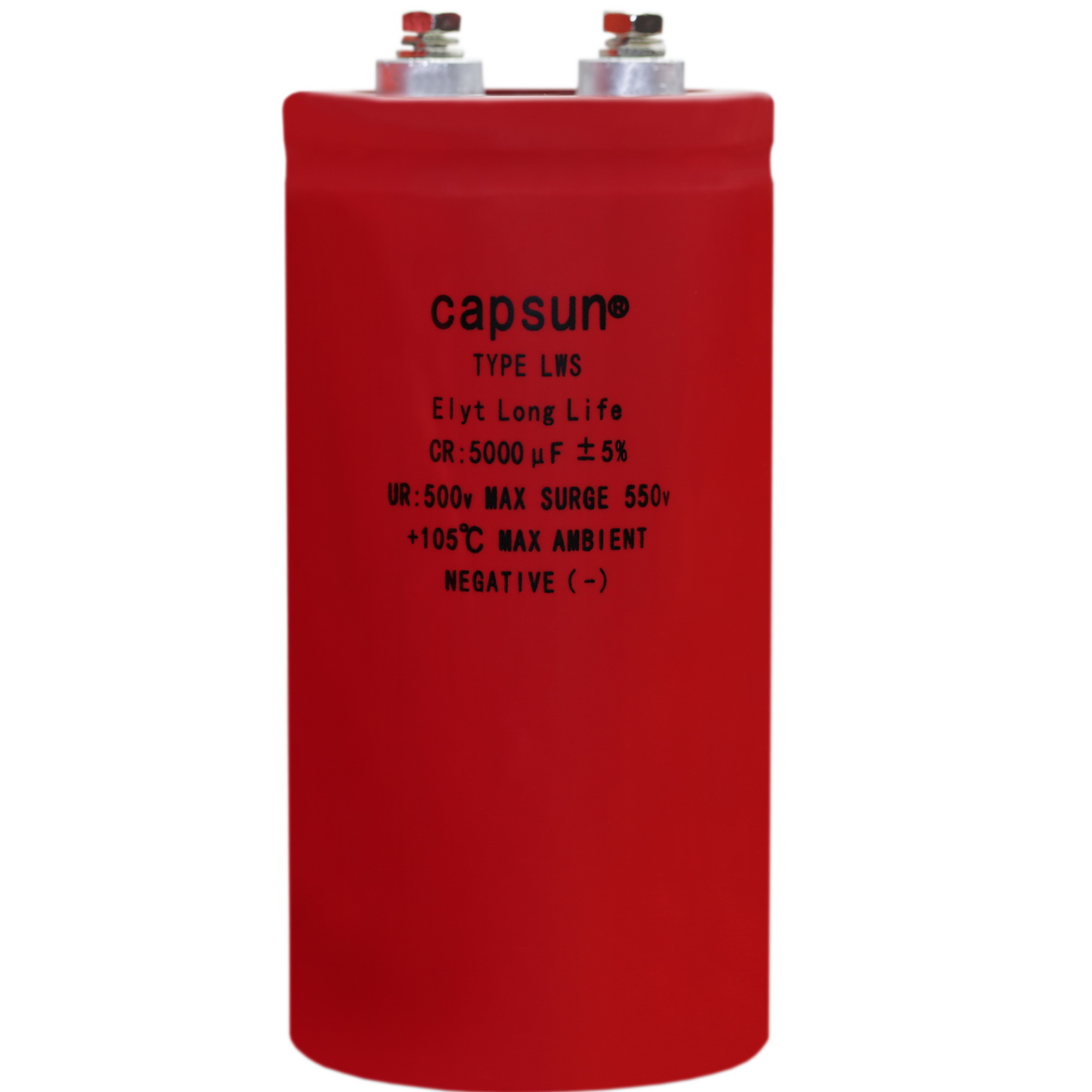

標準品鋁電解電容器
系列：LWS
所屬分類(lei)：標準品鋁電解電容器
類別：標準品鋁電解電容器
額定(ding)電壓(ya)范圍（Vdc）：10~450

資料下載

工作上限溫度.標準壽命(hours)
詳細信息
規格書

105℃ 2000小時品

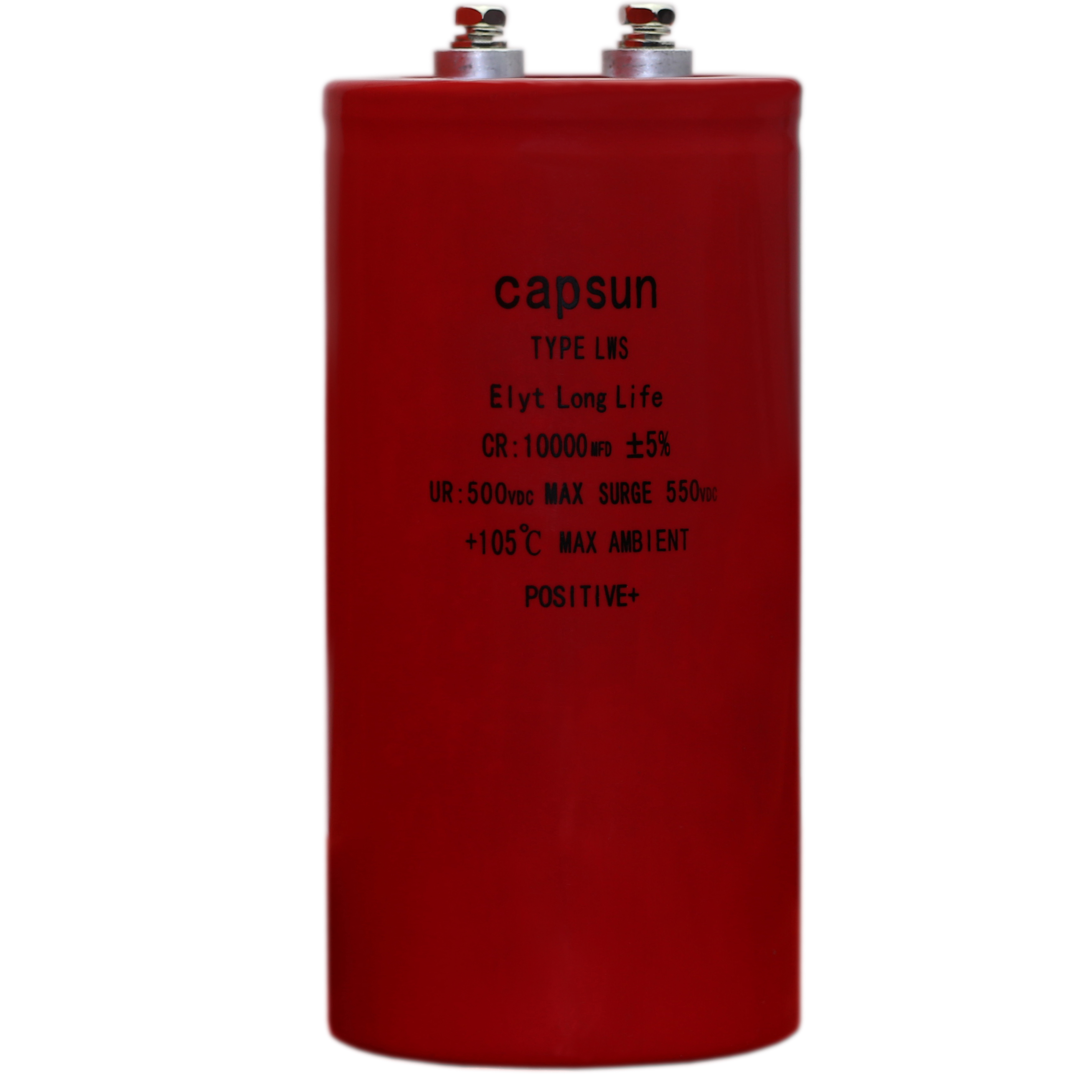

LWS 系列(lie)
●保證105℃ 2000小時。

適用于：大型工業電源，大型機械，中央空調，配電柜等智能消防巡檢數字控制柜、消防巡檢高頻控制柜、艦船自動充放電裝置、
岸電穩(wen)壓自動補償裝置(zhi)、UPS艦船電源(yuan)裝置(zhi)、各類(lei)電氣控制(zhi)設(she)備(bei)、低(di)壓系統網絡監(jian)測裝置(zhi)、電池(chi)檢測設(she)備(bei)、有源(yuan)濾波柜、錫膏印刷機。

◆規格表

項目	特性
工作溫度范圍(wei)	-40~+105℃（10-100VDC）-25~+105℃（160-450VDC）
額定(ding)電壓范圍	10~450VDC
靜(jing)電容(rong)量容(rong)許(xu)差	± 20%（M）----------------20℃/120HZ
漏電流	I=0.02CV或者5mA中任意一個較小值 I:漏電(dian)流（µA）、C:靜電(dian)容量（µF）、額定(ding)電(dian)壓(ya)（VDC）--------------20℃/5分(fen)鐘值
損(sun)失角正切(qie)值(zhi)（tanδ）	≤標準品一覽(lan)表(biao)值--------------------------20℃/120HZ
溫度特性	靜電(dian)容(rong)量變(bian)化率 C（-25℃）/C（+20℃）≥0.7 -------------------20℃/120HZ
絕緣電阻	全部端子(zi)和容器套(tao)上的絕緣套(tao)且安裝的固(gu)定帶(dai)之(zhi)間用DC500V的絕緣電(dian)阻測定儀(yi)測出的值≥100MΩ
絕(jue)緣耐壓(ya)	全部端子和容器套的絕緣套且安(an)裝的固(gu)定(ding)帶之(zhi)間施加AC2000V的電壓1分鐘(zhong)未出現異(yi)常。
耐久性	在(zai)105℃環(huan)境(jing)下，不超過額(e)定(ding)(ding)電(dian)壓的(de)范圍(wei)下疊(die)加額(e)定(ding)(ding)紋波電(dian)流，連續加載額(e)定(ding)(ding)電(dian)壓2000小(xiao)時(shi)后，待溫度恢復到(dao)20℃進行測量時，應滿足以下要(yao)求。
	靜(jing)電容(rong)量變(bian)化率	≤初始值的(de)±20%
	損失角正(zheng)切值	≤初始(shi)規格值的200%
	漏電流	≤初(chu)始規格值
高溫無(wu)負荷(he)特性	在(zai)105℃環境下，無負(fu)荷放置1000小(xiao)時(shi)后待(dai)溫度(du)恢(hui)復到20℃，進行試驗前(qian)處理（JIS C 5101-4 4.1項）后進行(xing)測量時，應滿足(zu)以下(xia)要求
	靜電容(rong)量變化率	≤初始值的±20%
	損(sun)失角正(zheng)切值	≤初始規格(ge)值的200%
	漏(lou)電流	≤初始(shi)規格(ge)值

工作電壓	額(e)定容量(liang)	外(wai)殼尺(chi)寸(cun)D x L	損(sun)耗角(jiao)120HZ,20℃	額定紋波(bo)電流	產品型號
[V]	[μF]	[mm]	[tanδ]	（Ams/105℃,120HZ）	產品型號
10	27000	35*50	0.45	4.9	LWS100M5B273MA50
	33000	35*50	0.5	5.1	LWS100M5B333MA50
	39000	35*60	0.5	5.9	LWS100M5B393MA60
	47000	35*80	0.5	7.1	LWS100M5B473MA80
	56000	35*80	0.6	7.1	LWS100M5B563MA80
	68000	35*100	0.6	8.5	LWS100M5B683MAA0
	82000	35*100	0.65	8.9	LWS100M5B823MAA0
	100000	35*120	0.65	10.7	LWS100M5B104MAC0
	120000	50*80	0.75	11	LWS100M5C124MC80
	150000	50*100	0.8	13.2	LWS100M5C154MCA0
	180000	50*120	0.8	15.7	LWS100M5C184MCC0
	220000	50*120	0.85	16.8	LWS100M5C224MCC0
	270000	63.5*120	1.0	19.6	LWS100M5C274MDC0
	330000	63.5*120	1.2	19.7	LWS100M5C334MDC0
	390000	76.2*120	1.5	21.3	LWS100M5C394MEC0
	470000	76.2*120	1.8	21.4	LWS100M5C474MEC0
	560000	76.2*140	2.0	23.6	LWS100M5C564MEE0
	680000	89*140	2.4	26.0	LWS100M5C684MFE0
16	18000	35*50	0.4	4.2	LWS160M5B183MA50
	22000	35*50	0.4	4.7	LWS160M5B223MA50
	27000	35*60	0.4	5.5	LWS160M5B273MA60
	33000	35*60	0.45	5.7	LWS160M5B333MA60
	39000	35*80	0.45	6.8	LWS160M5B393MA80
	47000	35*80	0.5	7.1	LWS160M5B473MA80
	56000	35*100	0.5	8.4	LWS160M5B563MAA0
	68000	35*100	0.55	8.8	LWS160M5B683MAA0
	82000	50*80	0.55	10.7	LWS160M5C823MC80
	100	50*80	0.65	10.8	LWS160M5C104MC80
	120000	50*100	0.65	13.1	LWS160M5C124MCA0
	150000	50*120	0.7	15.3	LWS160M5C154MCC0
	180000	50*120	0.8	15.7	LWS160M5C184MCC0
	220000	63.5*120	0.85	19.2	LWS160M5C224MDC0
	270000	63.5*120	1.0	19.6	LWS160M5C274MDC0
	330000	76.2*120	1.3	21.1	LWS160M5C334MEC0
	390000	76.2*120	1.5	21.3	LWS160M5C394MEC0
	470000	76.2*140	1.6	24.2	LWS160M5C474MEE0
	560000	89*140	2.0	28.1	LWS160M5C564MFE0
	680000	89*140	2.4	28.5	LWS160M5C684MFE0
25	12000	35*50	0.35	3.7	LWS250M5B123MA50
	15000	35*50	0.35	4.1	LWS250M5B153MA50
	18000	35*60	0.35	4.8	LWS250M5B183MA60
	22000	35*60	0.35	5.3	LWS250M5B223MA60
	27000	35*80	0.35	6.4	LWS250M5B273MA80
50	27000	50*80	0.25	9.1	LWS500M5C273MC80
	33000	50*100	0.25	11.1	LWS500M5C333MCA0
	39000	50*120	0.25	13.1	LWS500M5C393MCC0
	47000	50*120	0.3	13.9	LWS500M5C473MCC0
	56000	63.5*100	0.35	13.9	LWS500M5C563MDA0
	68000	63.5*120	0.35	16.6	LWS500M5C683MDC0
	82000	76.2*120	0.4	18.9	LWS500M5C823MEC0
	100000	76.2*120	0.45	19.5	LWS500M5C104MEC0
	120000	76.2*120	0.55	19.5	LWS500M5C124MEC0
	150000	89*140	0.6	23.9	LWS500M5C154MFE0
	180000	89*140	0.75	23.9	LWS500M5C184MFE0
63	2700	35*50	0.2	2.3	LWS630M5B272MA50
	3300	35*50	0.2	2.5	LWS630M5B332MA50
	3900	35*50	0.2	2.8	LWS630M5B392MA50
	4700	35*50	0.2	3.1	LWS630M5B472MA50
	5600	35*60	0.2	3.5	LWS630M5B562MA60
	6800	35*60	0.2	3.9	LWS630M5B682MA60
	8200	35*80	0.2	4.7	LWS630M5B822MA80
	10000	35*80	0.25	4.7	LWS630M5B103MA80
	12000	35*100	0.25	5.5	LWS630M5B123MAA0
	15000	35*120	0.25	6.6	LWS630M5B153MAC0
	18000	50*80	0.25	7.4	LWS630M5C183MC80
	22000	50*100	0.25	9	LWS630M5C223MCA0
	27000	50*120	0.25	10.9	LWS630M5C273MCC0
	33000	50*120	0.25	12	LWS630M5C333MCC0
	39000	63.5*100	0.3	12.5	LWS630M5C393MDA0
	47000	63.5*120	0.3	14.9	LWS630M5C473MDC0
	56000	63.5*120	0.3	16.3	LWS630M5C563MDC0
	68000	76.2*120	0.35	18.4	LWS630M5C683MEC0
	82000	76.2*140	0.4	20	LWS630M5C823MEE0
	100000	76.2*140	0.5	20	LWS630M5C104MEE0
	120000	89*140	0.6	21.8	LWS630M5C124MFE0
80	2200	35*50	0.15	2.4	LWS800M5B222MA50
	2700	35*50	0.15	2.7	LWS800M5B272MA50
	3300	35*50	0.15	3.0	LWS800M5B332MA50
	3900	35*60	0.15	3.4	LWS800M5B392MA60
	4700	35*60	0.15	3.7	LWS800M5B472MA60
	5600	35*80	0.15	4.5	LWS800M5B562MA80
	6800	35*80	0.15	4.9	LWS800M5B682MA80
	8200	35*100	0.2	5.1	LWS800M5B822MAA0
	10000	35*120	0.2	6.1	LWS800M5B103MAC0
	12000	50*80	0.2	6.7	LWS800M5C123MC80
	15000	50*100	0.2	8.3	LWS800M5C153MCA0
160	10000	63.5*120	0.2	8.4	LWS161M5C103MDC0
	12000	76.2*100	0.2	9.4	LWS161M5C123MEA0
	15000	76.2*120	0.2	11.4	LWS161M5C153MEC0
	18000	76.2*140	0.2	13.4	LWS161M5C183MEE0
	22000	89*140	0.25	14.5	LWS161M5C223MFE0
	27000	89*140	0.25	16.0	LWS161M5C273MFE0
200	330	35*50	0.15	0.9	LWS201M5B331MA50
	390	35*50	0.15	1.0	LWS201M5B391MA50
	470	35*50	0.15	1.1	LWS201M5B471MA50
	560	35*50	0.15	1.2	LWS201M5B561MA50
	680	35*50	0.15	1.3	LWS201M5B681MA50
	820	35*50	0.15	1.4	LWS201M5B821MA50
	1000	35*60	0.15	1.7	LWS201M5B102MA60
	1200	35*60	0.15	1.9	LWS201M5B122MA60
	1500	35*80	0.15	2.3	LWS201M5B152MA80
	1800	35*80	0.15	2.5	LWS201M5B182MA80
	2200	35*100	0.15	3.0	LWS201M5B222MAA0
	2700	35*120	0.15	3.6	LWS201M5B272MAC0
	3300	50*80	0.15	4.1	LWS201M5C332MC80
	3900	50*100	0.15	4.9	LWS201M5C392MCA0
	4700	63.5*100	0.2	5.3	LWS201M5C472MDA0
	5600	63.5*100	0.2	5.8	LWS201M5C562MDA0
	6800	63.5*120	0.2	6.9	LWS201M5C682MDC0
	8200	63.5*120	0.2	7.6	LWS201M5C822MDC0
	10000	76.2*120	0.2	9.3	LWS201M5C103MEC0
	12000	76.2*120	0.2	10.2	LWS201M5C123MEC0
	15000	76.2*140	0.2	12.2	LWS201M5C153MEE0
	18000	89*140	0.25	13.1	LWS201M5C183MFE0
250	270	35*50	0.15	0.8	LWS251M5B271MA50
	330	35*50	0.15	0.9	LWS251M5B331MA50
	390	35*50	0.15	1.0	LWS251M5B391MA50
	470	35*50	0.15	1.1	LWS251M5B471MA50
	560	35*50	0.15	1.2	LWS251M5B561MA50
	680	35*60	0.15	1.4	LWS251M5B681MA60
	820	35*80	0.15	1.6	LWS251M5B821MA80
	1000	35*80	0.2	1.6	LWS251M5B102MA80
	1200	35*80	0.2	1.8	LWS251M5B122MA80
	1500	35*100	0.2	2.1	LWS251M5B152MAA0
	1800	35*120	0.2	2.5	LWS251M5B182MAC0
	2200	50*80	0.2	2.9	LWS251M5C222MC80
	2700	50*100	0.2	3.5	LWS251M5C272MCA0
	3300	50*120	0.2	4.2	LWS251M5C332MCC0
	3900	50*120	0.2	4.6	LWS251M5C392MCC0
350	3900	76.2*120	0.15	6.7	LWS351M5C392MEC0
	5600	76.2*130	0.15	8.3	LWS351M5C562MED0
	6800	76.2*140	0.15	9.5	LWS351M5C682MEE0
	8200	89*140	0.15	11.4	LWS351M5C822MFE0
400	180	35*50	0.1	0.8	LWS401M5B181MA50
	220	35*50	0.1	0.9	LWS401M5B221MA50
	270	35*50	0.1	1.0	LWS401M5B271MA50
	330	35*60	0.1	1.2	LWS401M5B331MA60
	390	35*60	0.1	1.3	LWS401M5B391MA60
	470	35*80	0.1	1.4	LWS401M5B471MA80
	560	35*80	0.15	1.4	LWS401M5B561MA80
	680	35*100	0.15	1.7	LWS401M5B681MAA0
	820	35*120	0.15	2.0	LWS401M5B821MAC0
	1000	50*80	0.15	2.2	LWS401M5C102MC80
	1200	50*100	0.15	2.7	LWS401M5C122MCA0
	1500	50*120	0.15	3.3	LWS401M5C152MCC0
	2200	63.5*100	0.15	4.2	LWS401M5C222MDA0
	3300	63.5*120	0.15	5.5	LWS401M5C332MDC0
	4700	76.2*130	0.15	7.6	LWS401M5C472MED0
	5600	89*140	0.15	9.4	LWS401M5C562MFE0
	6800	89*140	0.15	10.4	LWS401M5C682MFE0
25	33000	35*80	0.4	6.7	LWS250M5B333MA80
	39000	35*100	0.4	7.8	LWS250M5B393MAA0
	47000	35*120	0.4	9.3	LWS250M5B473MAC0
	56000	50*80	0.45	9.7	LWS250M5C563MC80
	68000	50*100	0.45	11.2	LWS250M5C683MCA0
	82000	50*100	0.5	11.2	LWS250M5C823MCA0
	100000	50*120	0.5	14.8	LWS250M5C104MCC0
	120000	63.5*100	0.65	14.9	LWS250M5C124MDA0
	150000	63.5*120	0.65	17.9	LWS250M5C154MDC0
	180000	63.5*120	0.8	17.9	LWS250M5C184MDC0
	220000	76.2*120	0.85	21.3	LWS250M5C224MEC0
	270000	76.2*120	1	21.7	LWS250M5C274MEC0
	330000	76.2*140	1.2	23.4	LWS250M5C334MEE0
	390000	89*140	1.5	24.9	LWS250M5C394MFE0
35	8200	35*50	0.3	3.3	LWS350M5B822MA50
	10000	35*50	0.3	3.6	LWS350M5B103MA50
	12000	35*60	0.3	4.2	LWS350M5B123MA60
	15000	35*60	0.3	4.7	LWS350M5B153MA60
	18000	35*80	0.3	5.7	LWS350M5B183MA80
	22000	35*80	0.3	6.3	LWS350M5B223MA80
	27000	35*100	0.3	7.5	LWS350M5B273MAA0
	33000	35*120	0.3	9	LWS350M5B333MAC0
	39000	50*80	0.35	9.2	LWS350M5C393MC80
	47000	50*100	0.35	11.2	LWS350M5C473MCA0
	56000	50*100	0.4	11.4	LWS350M5C563MCA0
	68000	50*120	0.4	13.6	LWS350M5C683MCC0
	82000	63.5*100	0.45	14.8	LWS350M5C823MDA0
	100000	63.5*120	0.45	17.6	LWS350M5C104MDC0
	120000	63.5*120	0.55	17.6	LWS350M5C124MDC0
	150000	76.2*120	0.65	19.8	LWS350M5C154MEC0
	180000	76.2*120	0.8	19.8	LWS350M5C184MEC0
	220000	76.2*140	0.8	23.4	LWS350M5C224MEE0
	270000	89*140	1.0	25.5	LWS350M5C274MFE0
50	3900	35*50	0.2	2.8	LWS500M5B392MA50
	4700	35*50	0.2	3.1	LWS500M5B472MA50
	5600	35*50	0.2	3.3	LWS500M5B562MA50
	6800	35*50	0.25	3.3	LWS500M5B682MA50
	8200	35*60	0.25	3.8	LWS500M5B822MA60
	10000	35*80	0.25	4.6	LWS500M5B103MA80
	12000	35*80	0.25	5.1	LWS500M5B123MA80
	15000	35*80	0.25	5.7	LWS500M5B153MA80
	18000	35*100	0.25	6.7	LWS500M5B183MAA0
	22000	35*120	0.25	8.1	LWS500M5B223MAC0
80	18000	50*120	0.2	9.9	LWS800M5C183MCC0
	22000	50*120	0.2	11	LWS800M5C223MCC0
	27000	63.5*100	0.25	11.4	LWS800M5C273MDA0
	33000	76.2*100	0.25	13.9	LWS800M5C333MEA0
	39000	76.2*100	0.3	13.9	LWS800M5C393MEA0
	47000	76.2*120	0.3	16.5	LWS800M5C473MEC0
	56000	76.2*120	0.3	18.1	LWS800M5C563MEC0
	68000	76.2*140	0.35	19.7	LWS800M5C683MEE0
	82000	89*140	0.4	22.1	LWS800M5C823MFE0
100	1800	35*50	0.1	2.7	LWS101M5B182MA50
	2200	35*50	0.1	3	LWS101M5B222MA50
	2700	35*60	0.1	3.5	LWS101M5B272MA60
	3300	35*80	0.1	4.2	LWS101M5B332MA80
	3900	35*80	0.12	4.2	LWS101M5B392MA80
	4700	35*100	0.12	5	LWS101M5B472MAA0
	5600	35*100	0.12	5.4	LWS101M5B562MAA0
	6800	35*120	0.15	5.8	LWS101M5B682MAC0
	8200	50*80	0.15	6.4	LWS101M5C822MC80
	10000	50*100	0.15	7.8	LWS101M5C103MCA0
	12000	50*120	0.15	9.3	LWS101M5C123MCC0
	15000	50*120	0.15	10.4	LWS101M5C153MCC0
	18000	63.5*100	0.2	10.4	LWS101M5C183MDA0
	22000	63.5*120	0.2	12.5	LWS101M5C223MDC0
	27000	76.2*120	0.25	13.7	LWS101M5C273MEC0
	33000	76.2*120	0.25	15.2	LWS101M5C333MEC0
	39000	76.2*140	0.3	16.1	LWS101M5C393MEE0
	47000	89*140	0.3	19.3	LWS101M5C473MFE0
	56000	89*140	0.3	21.1	LWS101M5C563MFE0
160	560	35*50	0.15	1.2	LWS161M5B561MA50
	680	35*50	0.15	1.3	LWS161M5B681MA50
	820	35*50	0.15	1.4	LWS161M5B821MA50
	1000	35*50	0.15	1.6	LWS161M5B102MA50
	1200	35*60	0.15	1.9	LWS161M5B122MA60
	1500	35*60	0.15	2.1	LWS161M5B152MA60
	1800	35*60	0.15	2.5	LWS161M5B182MA80
	2200	35*80	0.15	2.8	LWS161M5B222MA80
	2700	35*100	0.15	3.3	LWS161M5B272MAA0
	3300	35*120	0.15	3.8	LWS161M5B332MAC0
	3900	50*80	0.2	3.8	LWS161M5C392MC80
	4700	50*100	0.2	4.6	LWS161M5C472MCA0
	5600	50*100	0.2	5.1	LWS161M5C562MCA0
	6800	50*120	0.2	6.1	LWS161M5C682MCC0
	8200	63.5*100	0.2	7.0	LWS161M5C822MDA0
250	4700	63.5*120	0.2	5.7	LWS251M5C472MDC0
	5600	63.5*120	0.2	6.3	LWS251M5C562MDC0
	6800	76.2*120	0.2	7.7	LWS251M5C682MEC0
	8200	76.2*120	0.2	8.4	LWS251M5C822MEC0
	10000	76.2*140	0.2	10.0	LWS251M5C103MEE0
	12000	89*140	0.2	11.9	LWS251M5C123MFE0
315	180	35*50	0.1	0.8	LWS3B1M5B181MA50
	220	35*50	0.1	0.9	LWS3B1M5B221MA50
	270	35*50	0.1	1.0	LWS3B1M5B271MA50
	330	35*50	0.1	1.1	LWS3B1M5B331MA50
	390	35*50	0.1	1.2	LWS3B1M5B391MA50
	470	35*60	0.1	1.4	LWS3B1M5B471MA60
	560	35*60	0.1	1.5	LWS3B1M5B561MA60
	680	35*80	0.1	1.7	LWS3B1M5B681MA80
	820	35*80	0.15	1.7	LWS3B1M5B821MA80
	1000	35*100	0.15	2.0	LWS3B1M5B102MAA0
	1200	35*120	0.15	2.4	LWS3B1M5B122MAC0
	1500	50*80	0.15	2.7	LWS3B1M5C152MC80
	1800	50*100	0.15	3.3	LWS3B1M5C182MCA0
	2200	50*120	0.15	4.0	LWS3B1M5C222MCC0
	2700	50*120	0.15	4.4	LWS3B1M5C272MCC0
	3300	63.5*100	0.15	5.1	LWS3B1M5C332MDA0
	3900	63.5*120	0.15	6.0	LWS3B1M5C392MDC0
	4700	76.2*100	0.15	6.8	LWS3B1M5C472MEA0
	5600	76.2*120	0.15	8.0	LWS3B1M5C562MEC0
	6800	76.2*130	0.15	9.2	LWS3B1M5C682MED0
	8200	89*140	0.15	11.4	LWS3B1M5C822MFE0
	10000	89*140	0.15	12.6	LWS3B1M5C103MFE0
350	180	35*50	0.1	0.8	LWS351M5B181MA50
	220	35*50	0.1	0.9	LWS351M5B221MA50
	270	35*50	0.1	1.0	LWS351M5B271MA50
	330	35*50	0.1	1.1	LWS351M5B331MA50
	390	35*60	0.1	1.3	LWS351M5B391MA60
	470	35*60	0.1	1.4	LWS351M5B471MA60
	560	35*80	0.1	1.6	LWS351M5B561MA80
	680	35*80	0.15	1.6	LWS351M5B681MA80
	820	35*100	0.15	1.8	LWS351M5B821MAA0
	1000	35*120	0.15	2.2	LWS351M5B102MAC0
	1200	50*80	0.15	2.4	LWS351M5C122MC80
	1500	50*100	0.15	3.0	LWS351M5C152MCA0
	1800	50*120	0.15	3.6	LWS351M5C182MCC0
	2200	50*120	0.15	4.0	LWS351M5C222MCC0
	2700	63.5*100	0.15	4.6	LWS351M5C272MDA0
450	1000	50*75	0.15	5.0	LWS451M5C102MC75
	1200	50*96	0.15	6.0	LWS451M5C122MC96
	1500	50*115	0.15	7.2	LWS451M5C152MCB5
	1800	50*130	0.15	8.3	LWS451M5C182MCD0
	2200	63.5*96	0.15	9.0	LWS451M5C222MD96
	2700	63.5*115	0.15	10.7	LWS451M5C272MDB5
	3300	63.5*130	0.15	12.4	LWS451M5C332MDD0
	3900	63.5*155	0.15	14.5	LWS451M5C392MDF5
		76.2*115	0.15	13.6	LWS451M5C392MEB5
	4700	63.5*190	0.15	17.5	LWS451M5C472MDK0
		76.2*130	0.15	15.6	LWS451M5C472MED0
	5600	76.2*155	0.15	18.3	LWS451M5C562MEF5
	6800	89*155	0.15	21.4	LWS451M5C682MFF5
	8200	89*155	0.15	23.5	LWS451M5C822MFF5
	10000	89*190	0.15	28.3	LWS451M5C103MFK0
	12000	89*220	0.15	33.6	LWS451M5C123MFN0

◆ 額(e)定(ding)紋波電流頻率修正(zheng)系數(shu)
紋波頻率與標準品一覽表的規定(ding)值(zhi)相異時，請使(shi)用小(xiao)于乘以下表系數所得之(zhi)值(zhi)的值(zhi)。

額定電壓（VDC）	Ød （mm）	頻(pin)率（HZ）
		50	120	300	1K	10K	50K
10～50	ø35～ø89	0.95	1.00	1.03	1.05	1.09	1.12
63～80	ø50～ø89
100	ø63.5～ø89
63～80	ø35	0.90	1.00	1.06	1.10	1.18	1.22
100	Ø50
100	Ø35	0.82	1.00	1.12	1.22	1.3	1.33
160～250	Ø76.2、ø89
160～250	Ø50、ø63.5	0.81	1.00	1.14	1.26	1.36	1.41
160～250	Ø35	0.80	1.00	1.19	1.34	1.46	1.52
315～400	Ø35～ø89

※鋁電解電容器由于在紋波電流疊加時自我發熱、溫度上升而老化，每升溫5℃壽命減少一半。
要想保持長壽命請在(zai)使(shi)用過程(cheng)中降低紋波電流。

上一篇高頻低阻電解電容,超長壽命電解電容,雙頭螺栓固定型電容器

標準品鋁電解電容器下一篇

FREE性玩弄少妇HD性老妇,岳妇伦丰满88XXX毛片A片,精品无码成人久久久久久,久久综合久色欧美综合狠狠,永久看看免费大片

產品展示

服務熱線

標準品鋁電解電容器
